Lg1093Ac05 | Honeywell | Lg Flame Detector

Manufacturer: Honeywell

LG1093AC05

Honeywell Gas Turbine flame monitoring systems

The Honeywell LG/EG flame monitoring system detects the UV radiation emitted by a hydrocarbon flame and produces an output signal to indicate a flame or noflame condition. This system has delivered

proven performance on General Electric (and GE licensee) gas turbines for more than 35 years.

Geiger Mueller-type sensor phototube. Detects UV radiation in the 180..260nm range of the spectrum. Solar blind and tolerant to black body radiation.

Two-year shelf-life, 10000h MTBF with over one billion (109) operating hours.

Gas Turbines for power genaration and compressors

Temperature range: -40...176C

Hardware outputs: For EG1033 amplifier modules only

EG1033AA: Transistor open collector

EG1033AB and EG1033AC: Relay contacts (SPDT)

Features: High sensitivity with fast Flame Present Response Time (0.1 sec typical)

Flame Loss Response Time: 0.2 sec max.

Amplifiers support multiple voltage requirements: 28 Vdc, 20-35 Vdc and 115 Vac.

Operating distances up to 330m (1000ft), sensor to amplifier.

Qualified component on General Electric turbines.

Available with European Directive CE mark for EMC 89/336/EEC, LVD 73/23/EEC and ATEX Explosive Atmosphere 94/9/EC (EEx d IIA T3 or EEX d IIC T3, Zone 1 and 2).

Available with Factory Mutual approval for explosive atmospheres (Class I, Div 1 and 2, Groups B, C and D).

Note: Honeywell LG1093 series may not work like expected on GE/NP DLE gas turbines (Low-NOx). These need pre-selected LG1093's that are not available via Honeywell

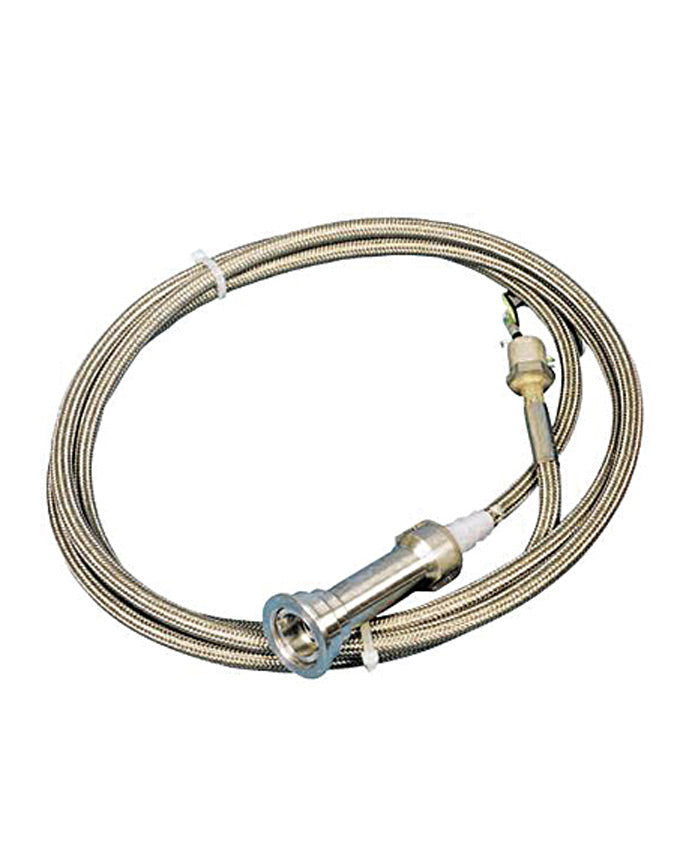

Flame Sensor with 1.73" O.D. by 0.14" wide flange and 2-conductor armoured cable. Viewing window rated 428mbar (6.3psi)

Model: Cable length 24ft (7.3m)
