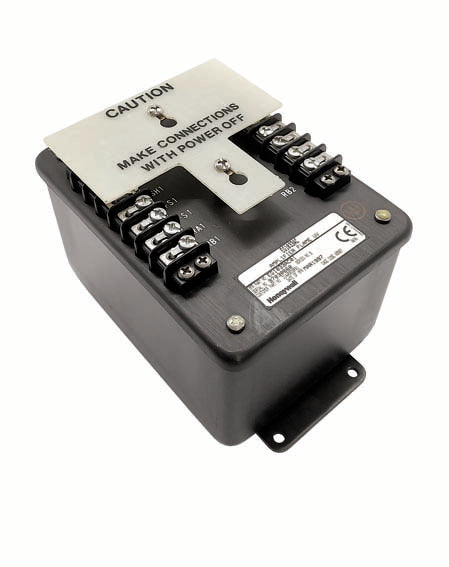

Eg1033Ac01 | Honeywell | Eg Amplifier For Lg Series

Manufacturer : Honeywell
Product No. : EG1033AC01
Product Type : EG Amplifier for LG series
Honeywell Gas Turbine flame monitoring systems
The Honeywell LG/EG flame monitoring system detects the UV radiation emitted by a hydrocarbon flame and produces an output signal to indicate a flame or noflame condition.
This system has delivered proven performance on General Electric (and GE licensee) gas turbines for more than 35 years.Geiger Mueller-type sensor phototube.
Detects UV radiation in the 180..260nm range of the spectrum.
Solar blind and tolerant to black body radiation.
Two-year shelf-life, 10000h MTBF with over one billion (109) operating hours.
Gas Turbines for power genaration and compressors
Temperature range: -40...176C
Hardware outputs: For EG1033 amplifier modules only
Features: High sensitivity with fast Flame Present Response Time (0.1 sec typical)
Flame Loss Response Time: 0.2 sec max.
Amplifiers support multiple voltage requirements: 28 Vdc, 20-35 Vdc and 115 Vac.
Operating distances up to 330m (1000ft), sensor to amplifier.
Qualified component on General Electric turbines.
Available with European Directive CE mark for EMC 89/336/EEC, LVD 73/23/EEC and ATEX Explosive Atmosphere 94/9/EC (EEx d IIA T3 or EEX d IIC T3, Zone 1 and 2).
Available with Factory Mutual approval for explosive atmospheres (Class I, Div 1 and 2, Groups B, C and D).
Weight : 0.82 Kg
